What needs has YYI TECH solved for customers in the industrial manufacturing field?

● Optimize structural design

Due to the limitations of traditional processing techniques, there are design flaws in the components. We have a professional cross-border technical team that optimizes the structural design through various rapid prototyping processes, achieving the goal of simplified processing while meeting design requirements.

● Reduce processing difficulty

The advantages of additive manufacturing can compensate for the disadvantages of subtractive manufacturing and make processing simpler.

● Shorten the processing cycle

Components with complex structures and lengthy processes will inevitably lead to long processing cycles and affect product delivery. The characteristics of various rapid prototyping processes can improve the delivery cycle.

● Reduce processing costs

Compared to the characteristics of large machining allowance, long process, and high precision requirements, various rapid prototyping processes can better reduce production costs

● Enhance material properties

YYI TECH offers a wide selection of fast process materials, many of which can replace materials used in traditional processes and even outperform them in certain functional characteristics.

● Personalized customization and small batch production

In terms of personalized customization and small batch production, integrating various rapid processes has more advantages than traditional processes, both in terms of processing costs and processing cycles. Especially in the repair or reprocessing of expired parts after long-term use in after-sales service; And the repair or restoration caused by the failure of a single component in the assembly.

The development of manufacturing methods has gone through three stages: equal material manufacturing, subtractive manufacturing, and additive manufacturing.



(1) Equal material manufacturing, refers to the production and manufacturing of products through casting, forging, welding, and other methods, with the material weight remaining basically unchanged, and has a history of more than 3000 years.

(2) Subtractive manufacturing, refers to the use of equipment such as turning, milling, planing, and grinding to cut materials into their designed shapes after the Industrial Revolution, with a history of over 300 years.

(3) Additive manufacturing, also known as 3D printing, refers to the use of technologies such as photopolymerization, selective laser sintering, and melt stacking to gradually accumulate materials into the desired shape.

Whether it is equal material manufacturing or subtractive manufacturing, in the industrial manufacturing process, product design is influenced and limited by manufacturing processes. Designers cannot freely unleash their imagination and pursue the most ideal product effect. With the perfect combination of 3D printing technology and traditional craftsmanship, industrial manufacturing has become increasingly simple and efficient;

Application of rapid prototyping in Industrial manufacturing



■ Mold processing and repair;

■ Processing and manufacturing of fixtures and jigs;

■ Small batch or bulk production of complex components;

■ Processing and manufacturing of the shell;

■ Pump components;

■ Oil and gas extraction equipment components;

■ Processing of general equipment and instrument components;

■ Using reverse engineering to process, manufacture, or repair damaged components.







Classic case we have done

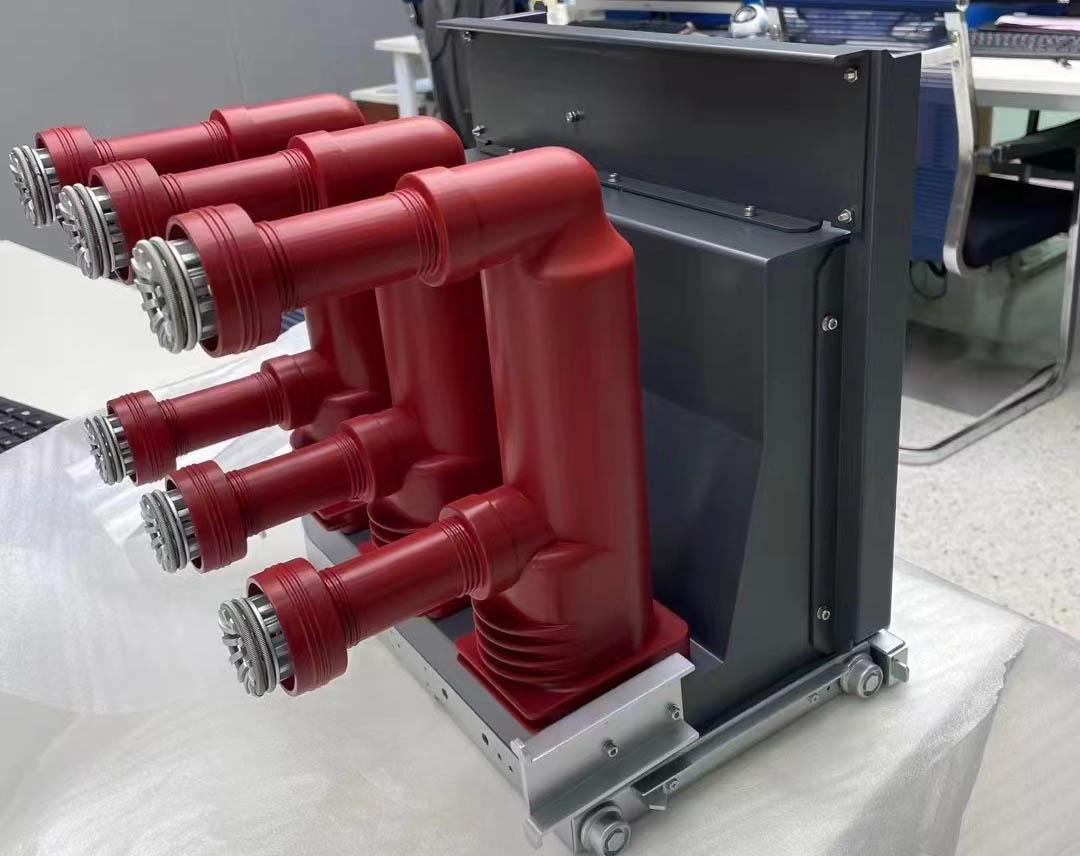

Vacuum casting ABS switch cabinet windshield plastic cover



● Customer requirements:

Requiring smooth surface, silk screen printing, product quality close to injection molded parts， and delivery time only 15days

● Production difficulties:

The quantity of products is small, it is not cost-effective to open metal molds, but customers require quality close to injection molded parts

● Quantity: 60pcs

● Material: ABS

● Process: Vacuum casting process

● Size: 440 * 252 * 60mm

● Delivery time: 15days



Our Production solution：



(1) Quantity 60pcs, due to the small quantity requirement, and tight delivery time, if we use traditional production methods to open metal molds, the cost will be too high for the customer and delivery time is at least 40days



(2) And the customer requires that the strength and appearance of the product achieve the effect of injection molding.



(3)  Based on the above requirements, we have considered vacuum casti

ng processes with ABS material (it can create simple molds, with very low cost and no products MOQ), delivery time only need 14days, and the surface with polished and painted to perfectly match the customer's needs

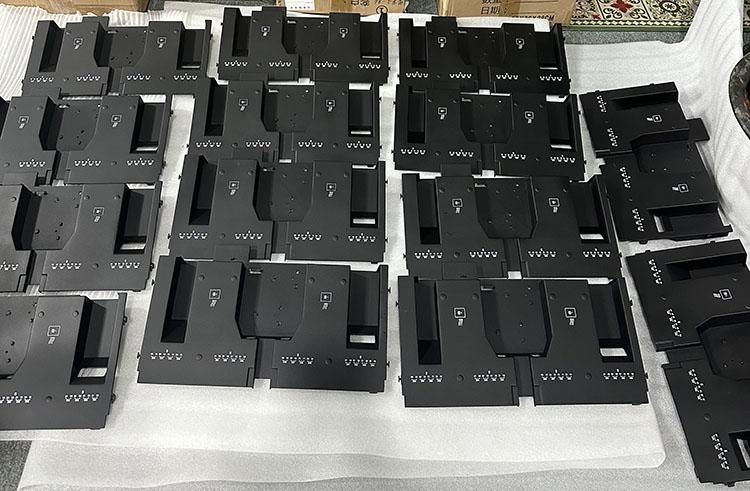

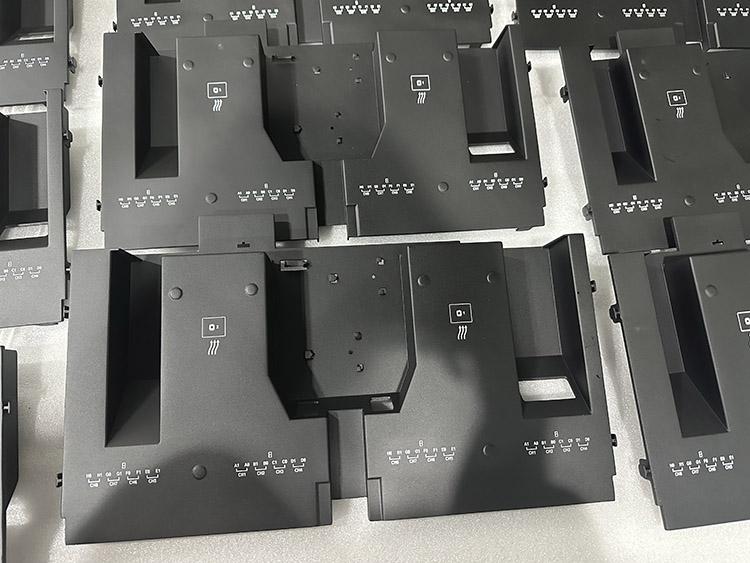

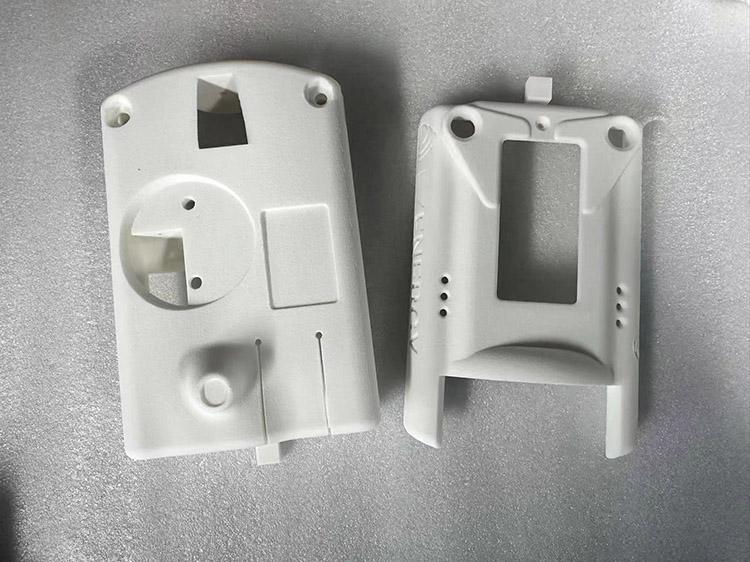

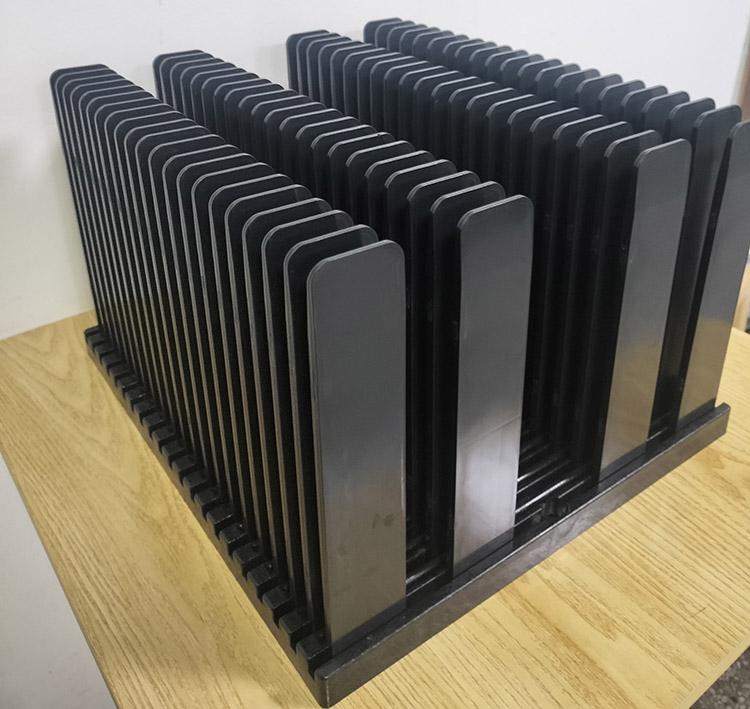

Small-volume injection molding plastic parts



● Customer requirements:

Customer no drawings, but provides samples,need flame-retardant materials with high dimensional accuracy, and delivery after assembly

● Production difficulties:

Need make 3D drawing according to the sample. Product size is relatively large and prone to deformation, which affects the assembly status. The plug-in board is too thick to be directly produced

● Quantity: 200 sets (200pcs bases+16800pcs plug-in boards)

● Material: Flame-retardant ABS

● Process: Injection molding process

● Size: 420*420*380mm



Our Production solution：



(1) Based on the samples provided by the customer, draw a 3D drawing through reverse scanning



(2) Make samples through 3D printing for customer confirmation



(3) The plug-in board is too thick to be produced directly. It can be split into two pieces and made into thin-walled parts for production, and then ultrasonically welded together



(4) For small batch products, we recommend two processes: metal mold injection molding and vacuum coating. After sample testing of both processes and cost considerations, the final customer chose to do metal mold injection molding

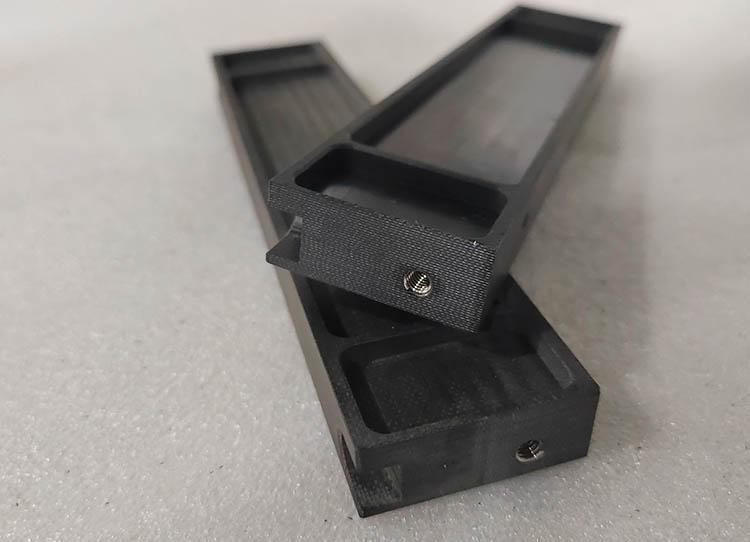

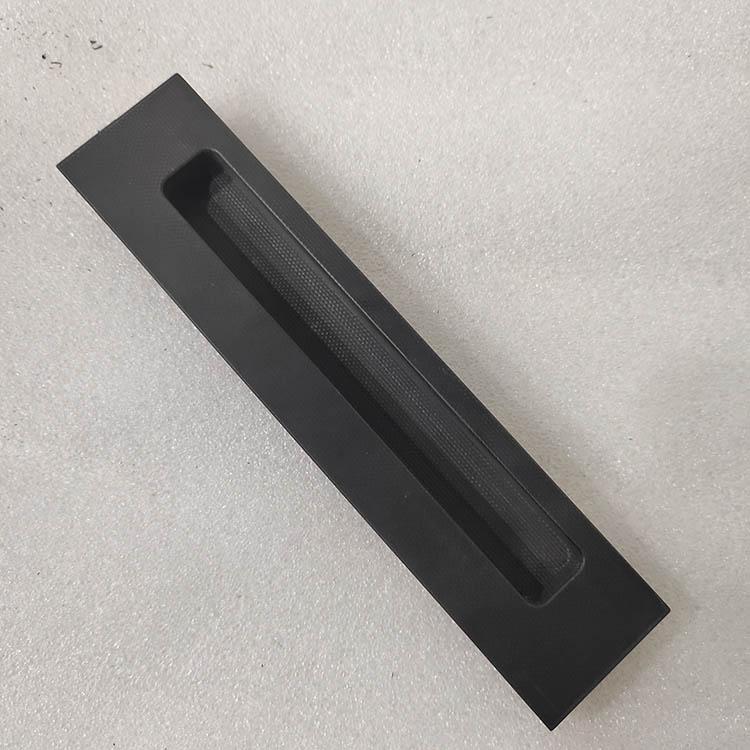

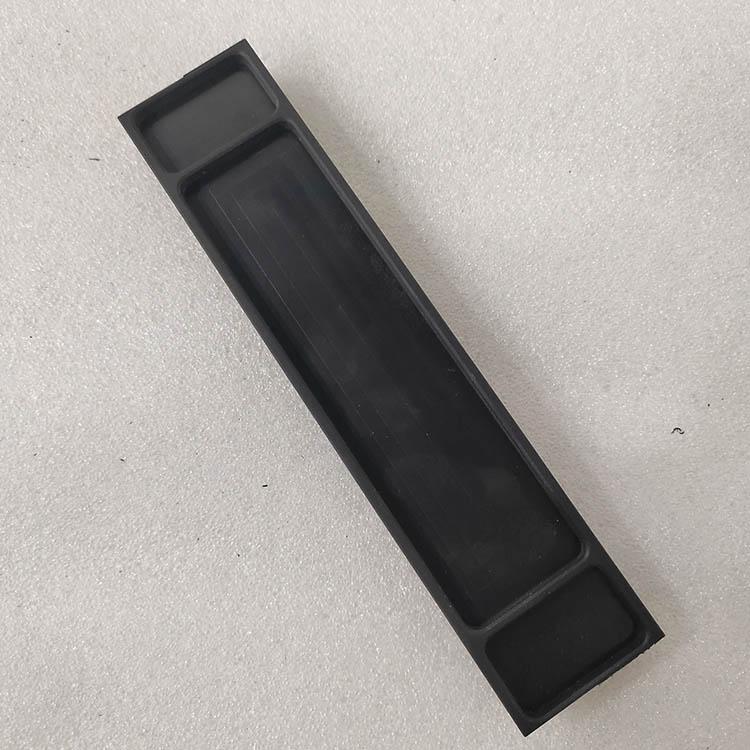

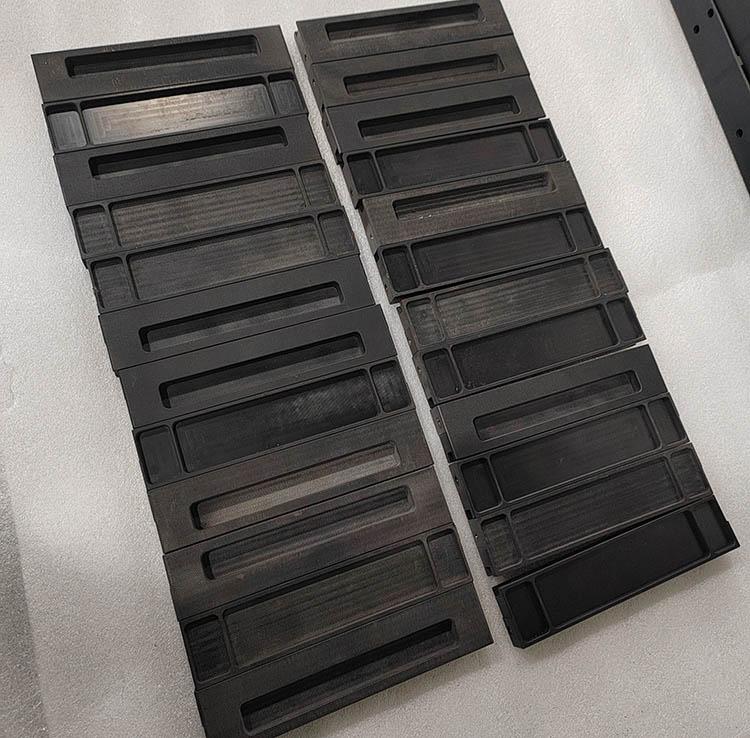

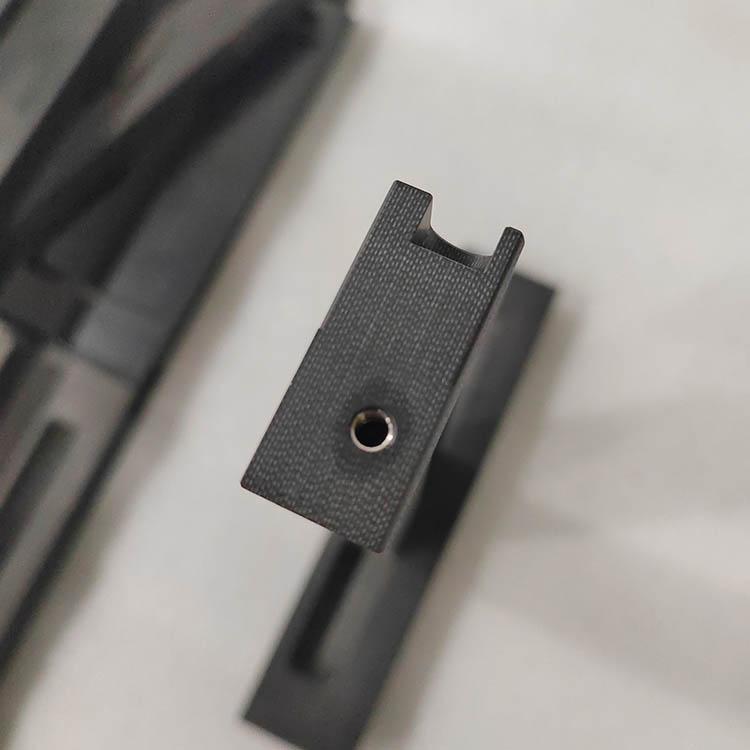

Small batch CNC machining plastic handle



● Customer requirements:

Need Lightweight and high-strength, corrosion-resistant, good fatigue resistance, environmentally friendly

● Production difficulties:

The material is relatively hard and difficult to process, and it is prone to bursting during the processing

● Quantity: 500pcs

● Material: Carbon fibre

● Process: CNC process

● Size: 160*40*20mm

Our Production solution：



(1) Due to the limited quantity requirement, if the mold is opened according to the traditional production method, the cost is too high for the customer



(2) The customer requires the strength of the product to reach the effect of metal, and the material can only be plastic, which requires high corrosion resistance and precision requirements.





(3) Based on the above requirements, we took samples of several materials at the same time and integrated customer needs. Finally, recommended carbon fiber materials and adopted CNC machining technology. This not only saves a lot of costs and production time without the need for mold making, but also perfectly meets product performance requirements

•
•
•

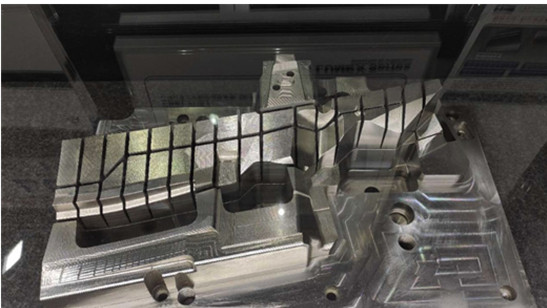

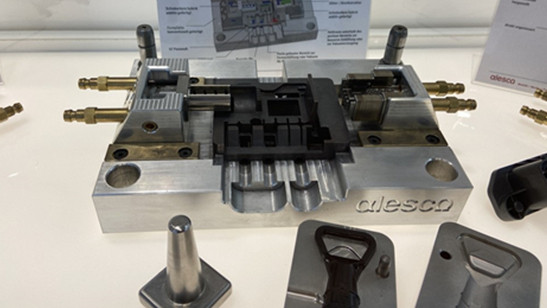

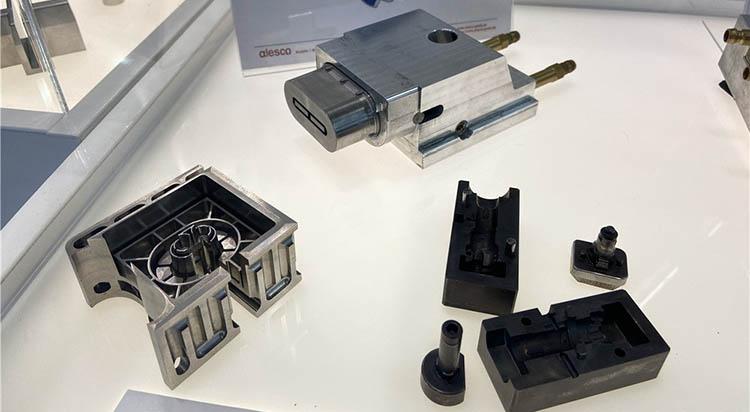

SLM 3D printing mold waterway



Printing process: SLM

Printing material: Mold steel

Technical Solution:

In terms of molds, the waterway system is one of the important factors affecting the quality of mold products. A superior waterway system can shorten the product molding cycle and improve product yield.

But currently, waterways are mainly manufactured by machining processes such as milling machines, which cannot process curved waterways and cannot cover mold cavities.



The application of slm metal 3D printing technology in the manufacturing of mold cooling water channels has broken through the limitations of cross drilling methods on cooling water channel design. Now, mold design companies can design conformal waterways closer to the cooling surface of the mold, which have smooth corners, faster flow rates, and higher cooling efficiency.



With the development and improvement of technology, 3D printing will inevitably be applied to more and more fields, and mold manufacturing must also utilize new technologies to make up for its own shortcomings and limitations. YYI TECH has always adhered to the mission of ushering in a new era of mold manufacturing, striving to inject fresh blood into traditional molds and revitalize the traditional manufacturing industry.

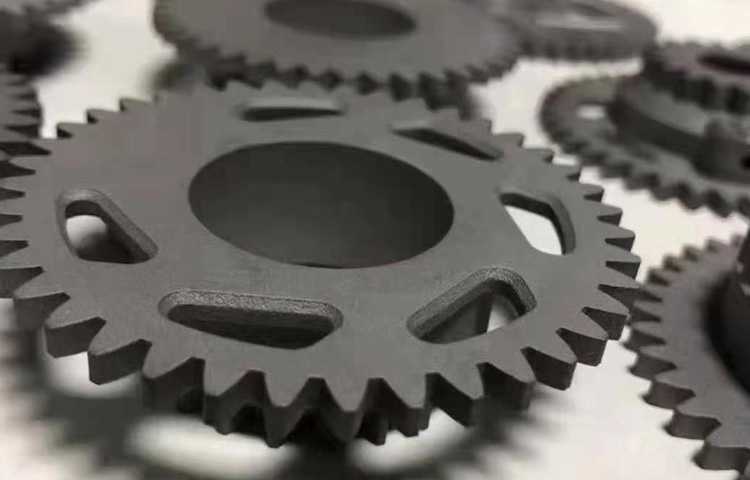

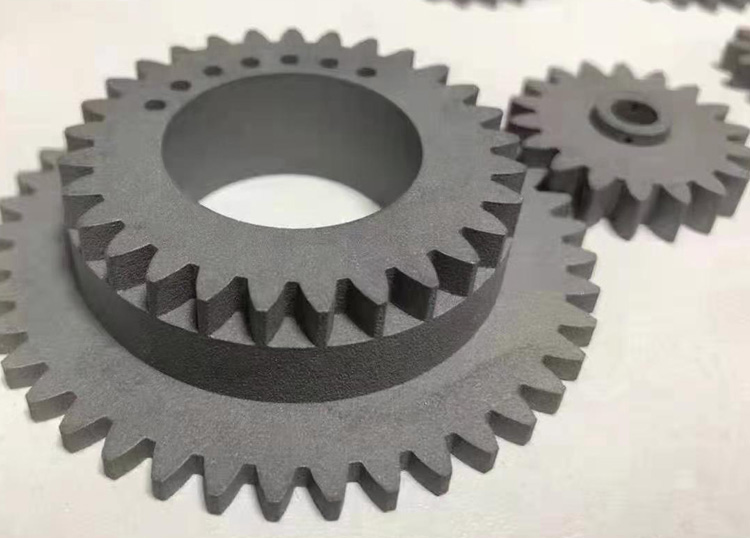

SLM metal 3d printing industrial gear



● Customer requirements:

Produce metal gear samples for functional verification

● Production difficulties:

Difficulty in controlling dimensional accuracy and surface roughness

● Quantity: 5sets

● Material: Stainless steel 316L

● Process: SLM 3D printing

● Delivery time: 5days

Our Production solution：



1. The parts need to undergo functional verification, which requires the accuracy of the product. Based on this, we will increase the fit clearance between the male and female gears to meet the verification requirements after assembly



2. In response to surface roughness, we have ground the parts to meet their basic surface requirements





Significant savings in sample production time and cost for customers
