Medical-Grade PA12 Nylon Brace: 3D Printing Transformation for Industrial Manufacturers
Home News

Medical-Grade PA12 Nylon Brace: 3D Printing Transformation for Industrial Manufacturers

Medical-Grade PA12 Nylon Brace: 3D Printing Transformation for Industrial Manufacturers

March 13, 2025

1. Client Background and Transformation Challenges

A long-established German industrial component manufacturer  traditionally supplied injection molds and metal parts to the automotive and machinery industries. Facing growing competition in traditional manufacturing, the client sought to enter the medical market, aiming to supply postoperative knee fixation braces to European rehabilitation centers. However, two major challenges arose:

Technical Adaptability: Traditional metal stamping processes couldn’t meet the need for lightweight braces (target weight ≤300g) or ergonomic curved surfaces.



2. Industrial-Grade Solutions

Material and Process Optimization

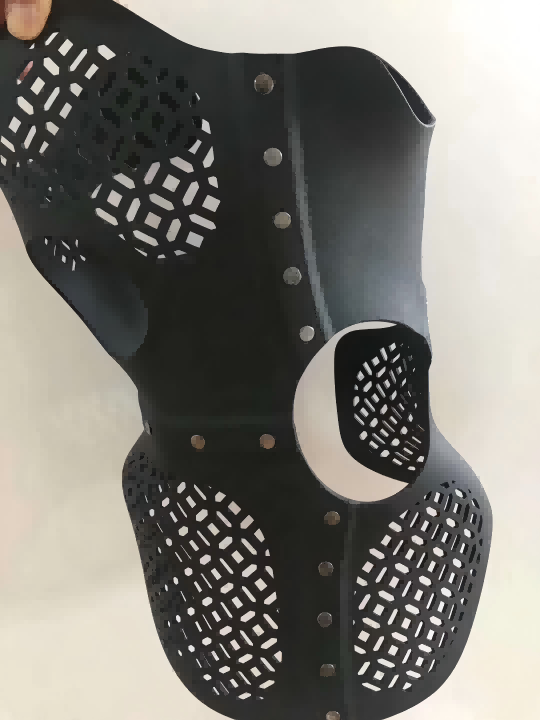

Nylon Replaces Metal: Industrial-grade PA12 nylon, meeting ASTM D4060 wear resistance standards, was selected for its durability and lightweight properties. Using FDM 3D printing technology, a hollow mesh structure (1.5mm wall thickness) was achieved, reducing weight by 60% compared to aluminum alloy solutions.

Rapid Iterative Design: Patient leg scan data powered parametric modeling software, generating a library of brace models adaptable to various body types. This innovation cut development cycles from two weeks to just three days.



Production Process Streamlining

Batch Printing Layout: Industrial-grade FDM printers (0.2mm layer thickness) produced eight braces per print run. Automated support removal and sandblasting improved the yield rate to 95%.

Cost Efficiency: 3D printing reduced material waste by 35% compared to CNC machining, slashing the total cost of the initial order by 42%.



Compliance Implementation

Industrial-Grade Testing: Fatigue tests simulating 500 donning cycles and wear resistance tests over 10,000 friction cycles confirmed that critical connectors' deformation remained ≤0.5mm.

Certification Strategy: The client's existing ISO 9001 quality management system was extended, requiring only basic biocompatibility testing. A 72-hour skin contact test showed no irritation.



Industrial-Grade FDM Printers Factory



3. Collaboration Outcomes

Metric Traditional Process 3D Printing Solution Improvement
Unit Weight 720g (Aluminum) 280g (Nylon PA12) 61% Reduction
Development Cycle 14 Days 3 Days 78% Acceleration
Initial Order Cost €8,200 €4,750 42% Cost Saving
Delivery Satisfaction 75% 92% 17% Increase



4. Client Feedback

"3D printing enabled us to pivot into the medical market using industrial-grade technology. The performance of nylon fully meets the demands of rehabilitation braces, and this asset-light model is ideal for small-to-medium batch orders." — Client Production Director



5. Technology Extension and Market Expansion

Building on this success, the client developed two new products:

  • Adjustable Wrist Stabilizer: Integrated hinge structures were 3D-printed in one piece, allowing postoperative rehabilitation angle adjustments.
  • Mass-Customized Insoles: Utilizing foot scan data and gradient density mesh designs, daily production capacity reached 50 pairs.



The adoption of PA12 nylon and 3D printing technology empowered the client to break into the medical market with lightweight, cost-effective postoperative braces. This transformation not only reduced costs and improved product performance but also accelerated development cycles, setting the stage for future medical product innovations.
